VMware Real Time Scenario 11 (VSAN)

Question:   VMware VSAN is popular now a days and do you have any experience in that one? Can you brief pre-requisites of VMware VSAN? Have you ever faced any issues with VSAN setup? If yes how you recovered it?

Most of us not blessed to Install & Configure VMware VSAN in Customer Infrastructure but soon you will be assigned to that role as the Storage slowly moving to VSAN world. Virtual SAN 6.0 comes with a Health Services plugin. This feature checks a range of different health aspects of Virtual SAN, and provides insight into the root cause of many potential Virtual SAN issues. The recommendation when triaging Virtual SAN is to begin with the Virtual SAN Health Services. Once an issue is detected, the Health Services highlights the problem and directs administrators to the appropriate VMware knowledge base article to begin problem solving.

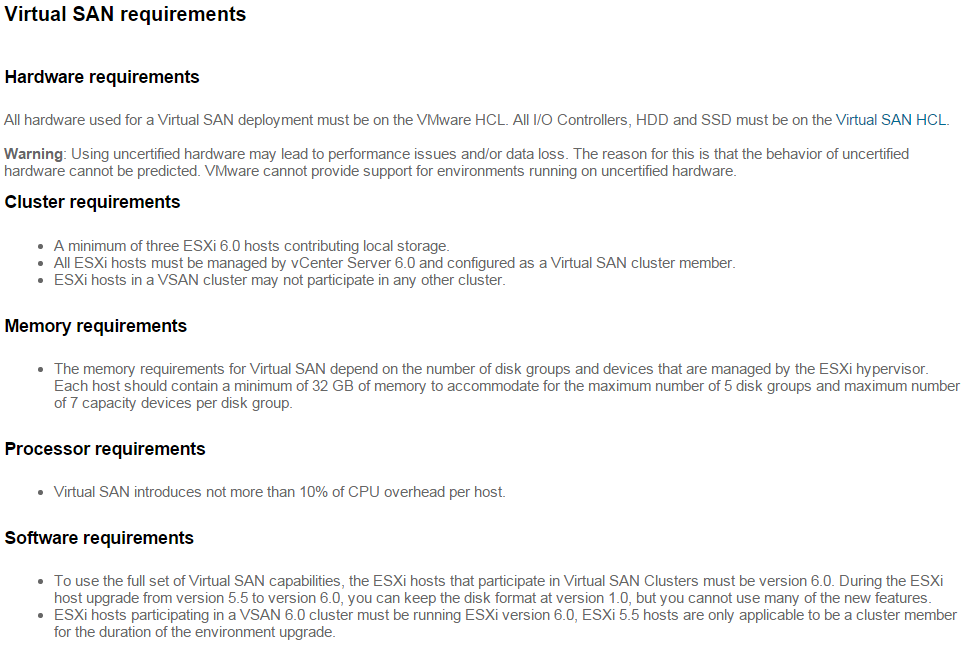

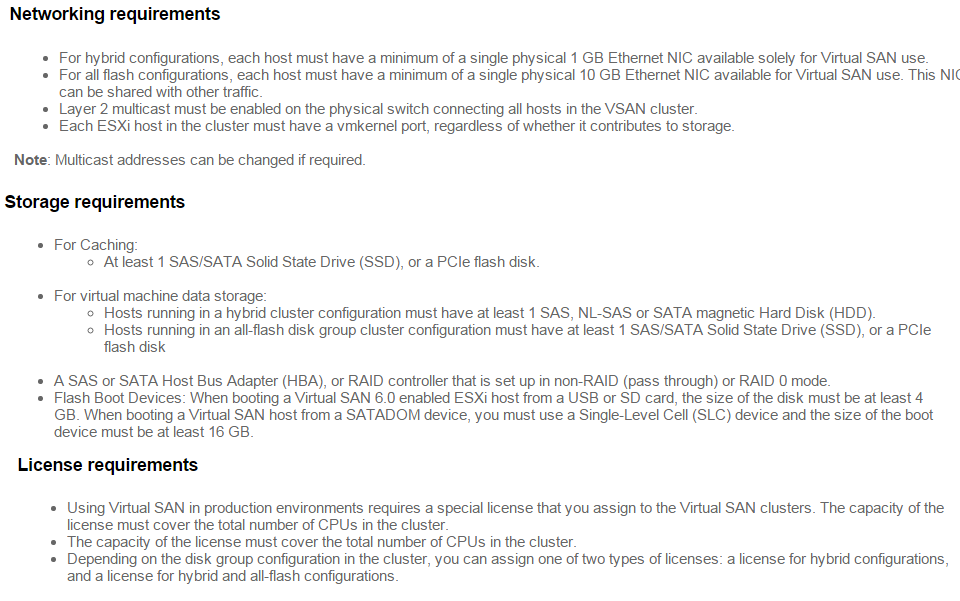

Please refer to the Virtual SAN Health Services Guide for further details on how to get the Health Services components, how to install them and how to use the feature for troubleshooting common Virtual SAN issues. It is better to know the pre-requisites before entering into Troubleshooting mode. Let’s review couple of pre-requisites for VMware Virtual SAN (List is really big and try to remember only important ones)

VSAN Pre-req1VSAN Pre-req2

Once you know the pre-requisites and next step is collecting Virtual SAN (VSAN) support logs. Virtual SAN support logs are contained in a normal ESXi support bundle in the form of VSAN traces. The VSAN support logs are gathered automatically by gathering the ESXi support bundle for the hosts. As VSAN is distributed across multiple ESXi hosts, VMware recommend you gather the ESXi support logs for all hosts configured for VSAN. As Virtual SAN is a software-based storage product, it is entirely dependent on the proper functioning of its underlying hardware components such as the network, the storage I/O controller, and the storage devices themselves. As Virtual SAN is an enterprise storage product, it can put an unusually demanding load on supporting components and subsystems, exposing flaws and gaps that might not be seen with simplistic testing or other, less-demanding use cases. Indeed, most Virtual SAN troubleshooting exercises involve determining whether or not the network is functioning properly, or whether the Virtual SAN VMware Compatibility Guide (VCG) has been rigorously followed.



As Virtual SAN uses the network to communicate between nodes, a properly configured and fully functioning network is essential to operations. Many Virtual SAN errors can be traced back to things like improperly configured multicast, mismatched MTU sizes and the like. More than simple TCP/IP connectivity is required for Virtual SAN. Virtual SAN uses server-based storage components to recreate the functions normally found in enterprise storage arrays. This architectural approach demands a rigorous discipline in sourcing and maintaining the correct storage I/O controllers, disks, flash devices, device drivers and firmware, as documented in the VMware Virtual SAN VCG.



Tools to troubleshoot Virtual SAN

1)            vSphere Web Client

2)            ESXCLI (esxcli vsan)

3)            Ruby vSphere Console – RVC

4)            VSAN Observer



Recovering a VMware Virtual SAN cluster after a vCenter Server rebuild

VSAN3

Finally When you attempt to configure or deploy VMware Virtual SAN (VSAN), you experience these symptoms:
  • VSAN configuration fails
  • In the vSphere Web Client, you see an error similar to:

    Found another host participating in the VSAN service which is not a member of this host’s vCenter cluster



Resolution

To resolve this issue, check all ESXi host nodes in the VSAN cluster and ensure that their configuration is correct and all VSAN hosts are in the same network subnet.

If you can cover this much information in the Interview, that will give you very good chances to crack it 🙂
